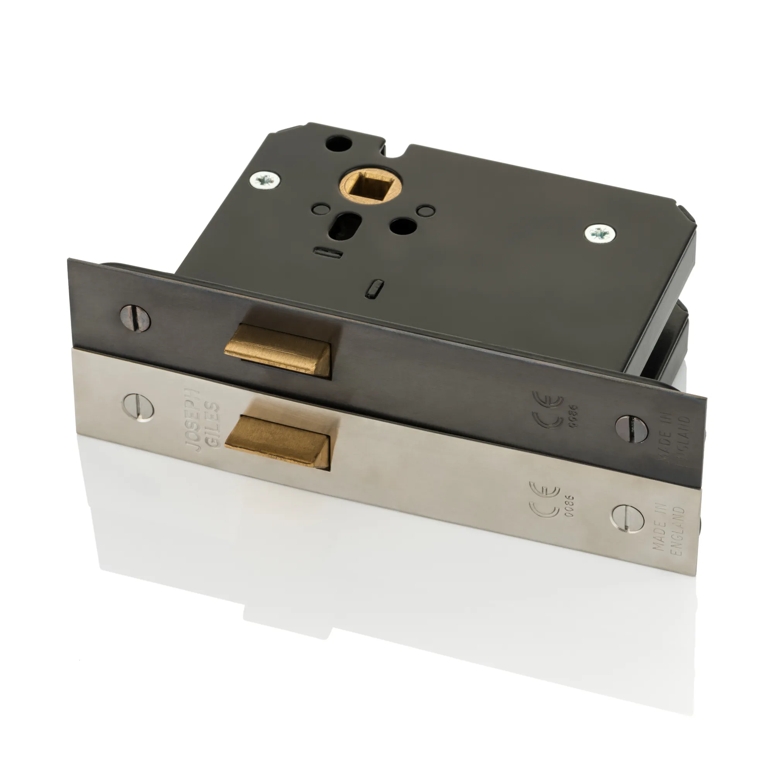

Standard Case Latch

These vertical latches are recessed into the door and the latchbolt is operated by a pair of lever handles and an 8mm spindle. Latches are used on non-locking (otherwise know as passage) doors.

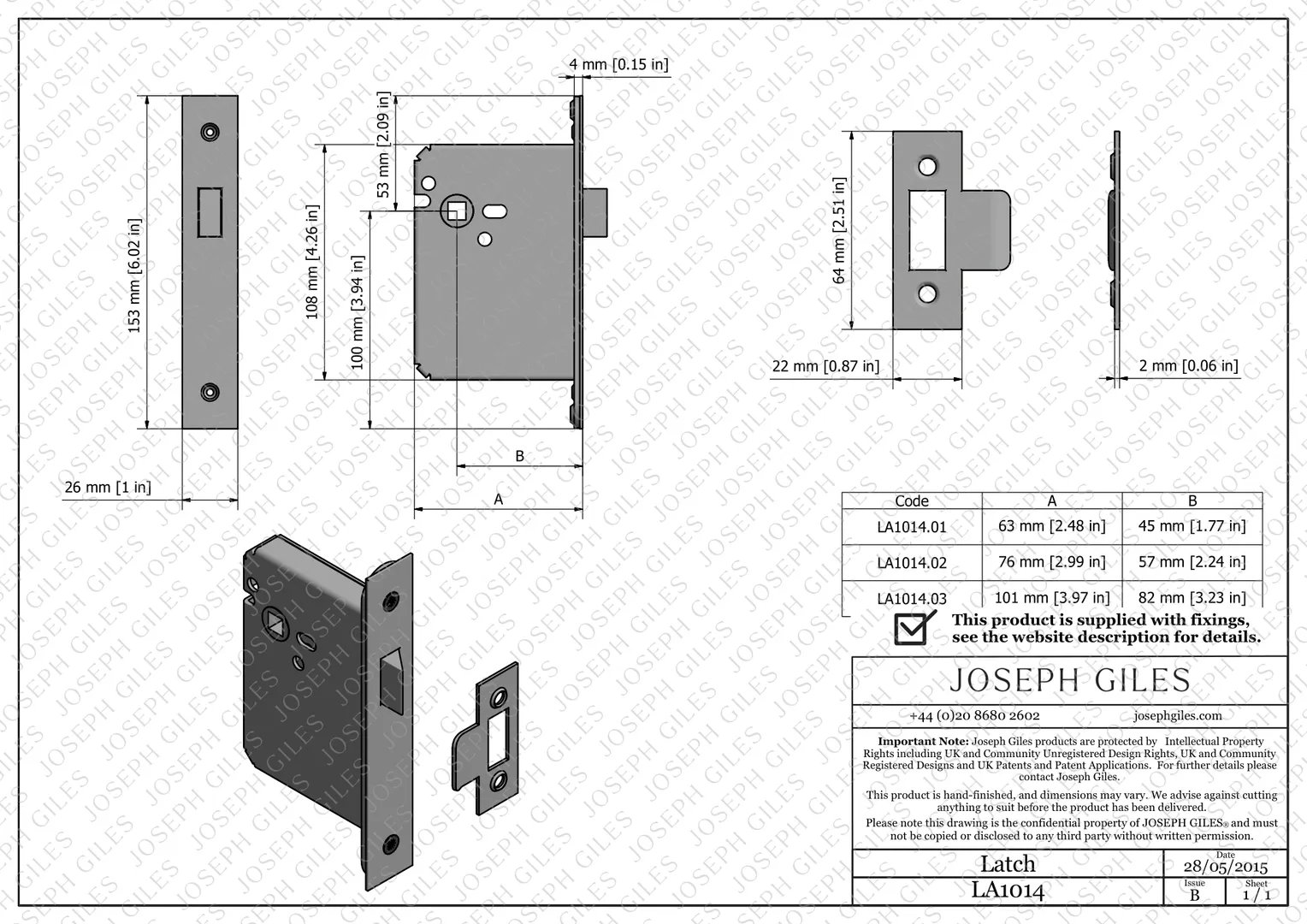

With the lockcase fitted centrally within the door thickness, the minimum recommended door thickness is 35mm and the maximum 48mm.

Available in 2 different spring strengths and supplied with the forend and strike plates and solid brass slotted screws (all visible parts) hand finished in our signature finishes.

Includes:

• Latch case (The actual latch)
• Solid brass/stainless forend plate (Plate that goes over the end of the lock, either branded or non-branded)
• Solid brass/stainless strike plate (Plate that is fitted to the frame)
• Fixing pack with solid brass slotted screws
• Strike tidy dust box
