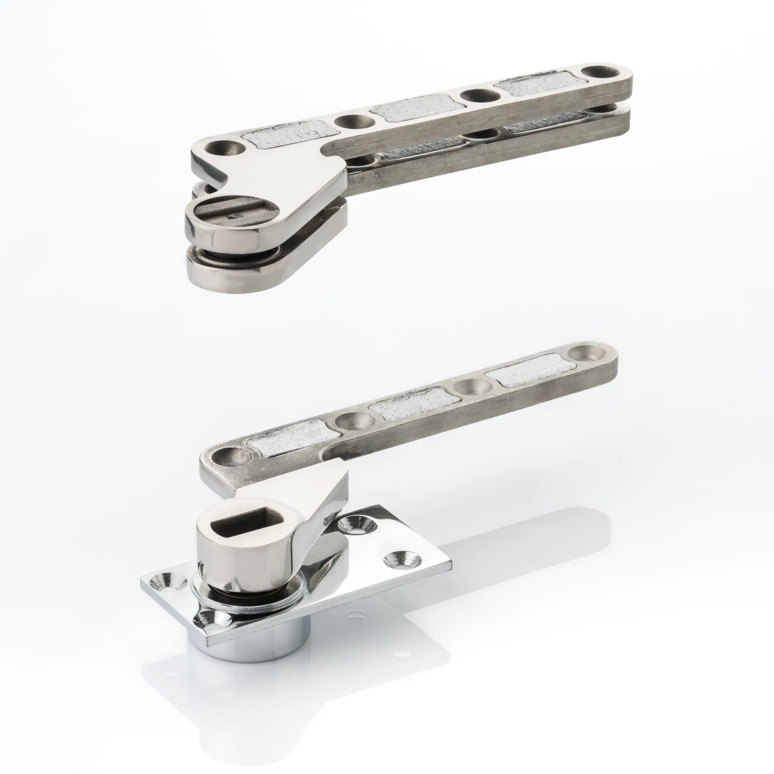

Floor & Frame Pivot with Single Way Arm Set

Floor pivot set with heavy duty bearing technology available for single action doors (doors that only open one way). This pivot set does not have a self-closing function and is designed for free swing doors. The PV1010 is Certifire approved (FD30) and mechanically guaranteed for ten years.

Normally used in applications where doors are very heavy or traditional butt hinges cannot be used due to bespoke frame detail. A recess of 15mm is required below the floor surface.

These pivot sets will suit doors that:

• Weigh up to 400kg
• Are a minimum 44mm thick
• Are a maximum of 1500mm wide

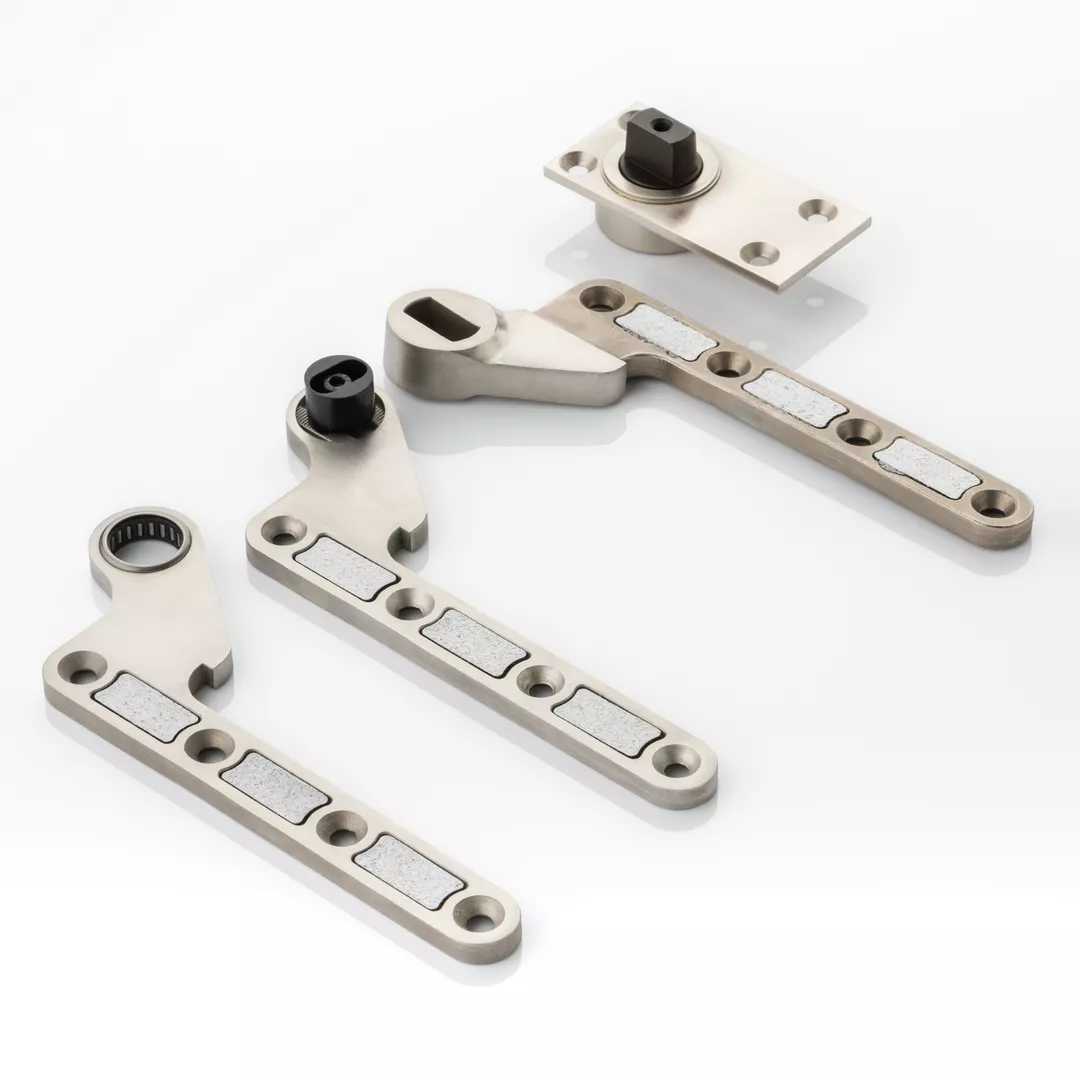

Included:

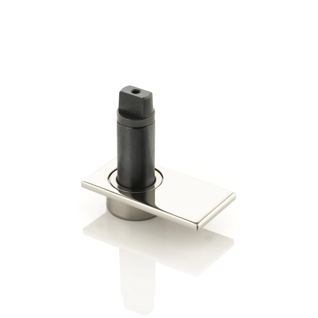

• Floor mounted pivot
• Single action top center components
• Single action bottom strap
• Fixings pack

Different height spindle extensions between 5mm and 50mm are available if the floor pivot part is being fitted underneath a floor substrate – these cannot be changed on-site.
