High Performance Rising Butt Hinge Left Hand

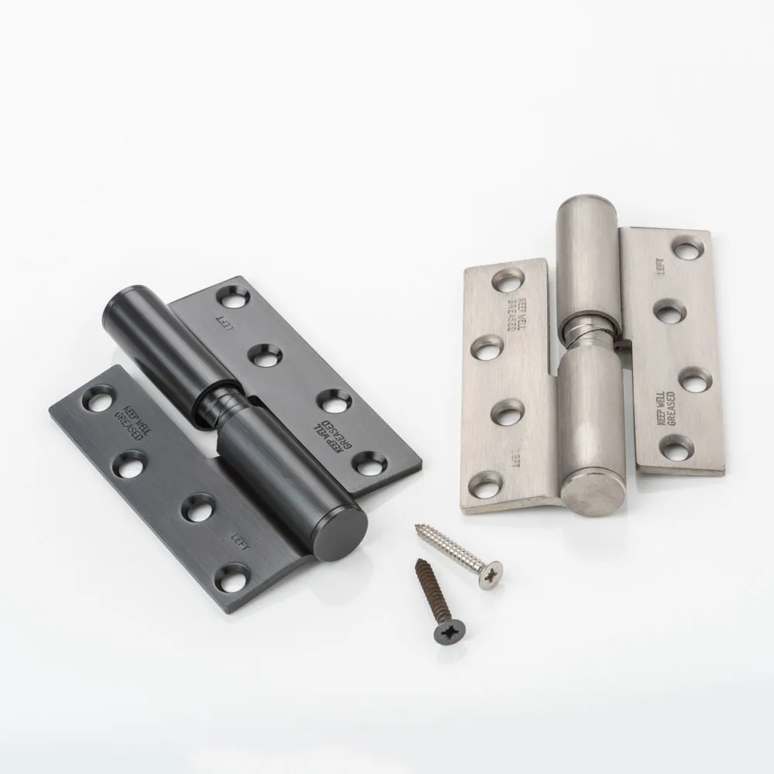

High performance rising butt hinge, tested on a maximum adjusted door weight of 50kg with two hinges – due to the precision engineering of these rising butt hinges, three or even four can be used per door leaf to increase the load-bearing if required.

Rising hinges are designed to ensure a door closes once opened and are often used on cubicle doors; the hinges cause the door to rise as it opens, the door will rise 10.5mm over 180 degrees so special door head/frame details may be required.

To ensure correct operation, pairs of rising butts must be fitted co-axially with screws supplied. The minimum recommended door thickness 29mm. Rising hinges require regular maintenance. After fitting, the cam faces and pin must be lubricated with grease supplied.

Rising hinges are handed this HG1042 is a left hand, please see HG1041 for the right-handed version.
